• TurboChef NGC-3062-2 Transformer, High Voltage, 230V, 50Hz replacement part
1 1
OEM

Turbochef

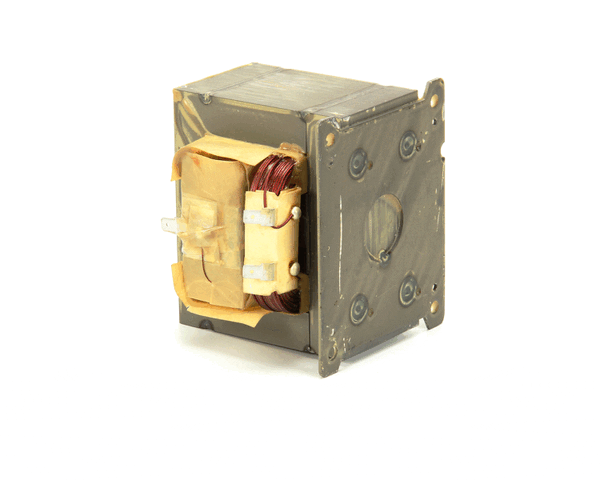

TurboChef NGC-3062-2 Transformer, High Voltage, 230V, 50Hz
Part #NGC-3062-2

Availability
$324.99
$324.99
SHIPPING
• Orders placed before 3:00 PM EST ship the same business day
SECURE SHOPPING

Shop with confidence—our site is secured with SSL encryption, and we prioritize your data security and privacy.

CUSTOMER REVIEWS
PRODUCT OVERVIEW

The TurboChef NGC-3062-2 High Voltage Transformer is a genuine OEM replacement transformer designed for TurboChef ovens using high-voltage microwave systems. Rated for 230V at 50Hz, this transformer supplies the correct high-voltage power required for magnetron operation and consistent microwave output. A properly functioning high-voltage transformer is essential for reliable cooking performance, safe operation, and stable electrical output. Manufactured to TurboChef OEM specifications, it ensures correct fit and dependable performance in commercial kitchen environments.

View full details

Details

The genuine OEM replacement Transformer, High Voltage, 230V, 50Hz is the factory-specified magnetron power transformer for TurboChef commercial ovens configured for international 230V, 50Hz electrical service, providing the approximately 2kV anode voltage and filament supply voltage required by the magnetron tube at the 50Hz line frequency used throughout Europe, Asia, and other international markets. The 50Hz variant of this transformer differs from the 60Hz domestic unit in its core lamination stack, winding turns count, and impedance characteristics, as 50Hz transformers require a larger core cross-section to avoid magnetic saturation at the lower operating frequency; substituting a 60Hz transformer in a 50Hz installation causes core saturation, excessive primary current, overheating, and rapid transformer failure. Choosing the genuine OEM replacement 230V, 50Hz high-voltage transformer ensures correct magnetron power delivery, safe thermal operation, and compliance with the electrical standards of the oven's international market.

International TurboChef ovens operating on 230V, 50Hz supply are subject to the same high-voltage transformer failure modes as domestic units — winding insulation breakdown from thermal aging, open-circuit failures from thermal cycling fatigue — but are additionally at risk from mains voltage variation common in some international markets, which can stress the transformer core and accelerate insulation degradation. Failure symptoms are identical to those of the domestic transformer: loss of microwave cooking function while convection performance remains intact, absence of magnetron current draw, and in severe cases audible electrical noise from the failing transformer. Replacing the faulty unit with a genuine OEM 230V, 50Hz replacement transformer restores full magnetron power at the correct international line frequency, returning the oven to its specified combination cooking performance in international service environments.

As with all high-voltage transformer replacements, full power disconnection, capacitor discharge verification, and adherence to TurboChef's HV safety procedures are mandatory before servicing the microwave power circuit in international ovens; this work must be performed by a qualified technician familiar with the oven's HV circuit and the electrical standards of the country of operation. Confirm secondary voltage output against the service manual specification at 230V, 50Hz before energizing the magnetron circuit. Replace this transformer whenever microwave function is lost and the magnetron is confirmed functional, or proactively when the oven's HV power circuit shows signs of insulation stress during routine electrical safety testing. Pair replacement with a magnetron performance check, HV capacitor inspection, and a full post-repair microwave power output test before returning the oven to international food-service operation.
Read more...

Product Specs

Voltage (V)

230V

Frequency (Hz)

50Hz

Phase

1Ph

Warranty

90-day warranty

SKU

145781
