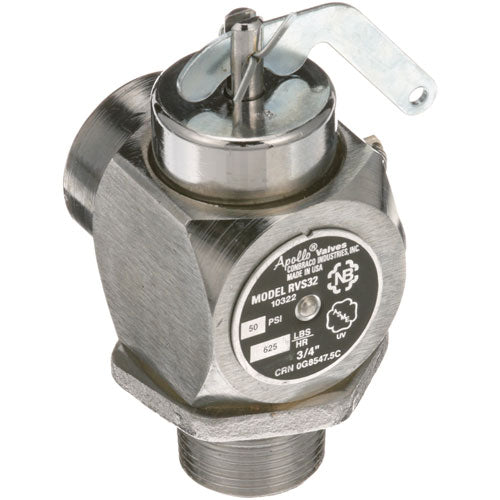

Valve, Steam Safety - 3/4", 50 Psi for Southbend Part# 3-SRV9/1
Details
The Valve, Steam Safety - 3/4", 50 Psi (Part# 3-SRV9/1) is a Southbend-compatible replacement steam safety/relief valve for use in Southbend commercial steamers and steam-jacketed kettles. The steam safety (relief) valve is a critical life-safety component that automatically vents excess pressure from the steam generator or kettle jacket if operating pressure exceeds a safe threshold.
This valve is spring-loaded to remain closed under normal operating pressure and to open automatically once pressure exceeds its rated set point, protecting the pressure vessel and operators from an overpressure event. Because it is a safety device rather than a process component, it must actuate at its rated pressure precisely and reseat fully once pressure returns to normal.
A safety valve that fails to seat properly will weep or continuously vent steam even at normal operating pressure, while a valve with a seized or corroded mechanism may not relieve pressure when needed — both conditions require immediate attention. Because this component protects against a pressure vessel failure, any doubt about its function should be treated as an urgent safety issue.
Replacement must be performed by a qualified technician familiar with pressure vessel safety devices, and in many jurisdictions must match the exact pressure rating (PSI) of the original valve — never substitute a different rating. De-energize and depressurize the vessel fully, allow it to cool, remove the original valve from its threaded port, and install the replacement with new thread sealant rated for steam service. Before returning the unit to service, verify the valve is correctly oriented and rated, and confirm the discharge path is clear and directed safely away from operators.
This compatible aftermarket replacement steam safety/relief valve is manufactured to the dimensional and functional specifications of Southbend equipment, ensuring proper fit, reliable operation, and long-term performance in a commercial kitchen environment.
Read more...
This valve is spring-loaded to remain closed under normal operating pressure and to open automatically once pressure exceeds its rated set point, protecting the pressure vessel and operators from an overpressure event. Because it is a safety device rather than a process component, it must actuate at its rated pressure precisely and reseat fully once pressure returns to normal.
A safety valve that fails to seat properly will weep or continuously vent steam even at normal operating pressure, while a valve with a seized or corroded mechanism may not relieve pressure when needed — both conditions require immediate attention. Because this component protects against a pressure vessel failure, any doubt about its function should be treated as an urgent safety issue.
Replacement must be performed by a qualified technician familiar with pressure vessel safety devices, and in many jurisdictions must match the exact pressure rating (PSI) of the original valve — never substitute a different rating. De-energize and depressurize the vessel fully, allow it to cool, remove the original valve from its threaded port, and install the replacement with new thread sealant rated for steam service. Before returning the unit to service, verify the valve is correctly oriented and rated, and confirm the discharge path is clear and directed safely away from operators.
This compatible aftermarket replacement steam safety/relief valve is manufactured to the dimensional and functional specifications of Southbend equipment, ensuring proper fit, reliable operation, and long-term performance in a commercial kitchen environment.
Product Specs
Warranty |
120-day warranty |
SKU |
142335 |
-
